Fire doors design and manufacturing

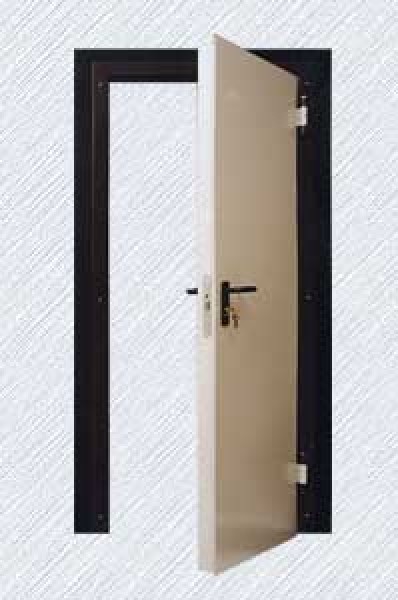

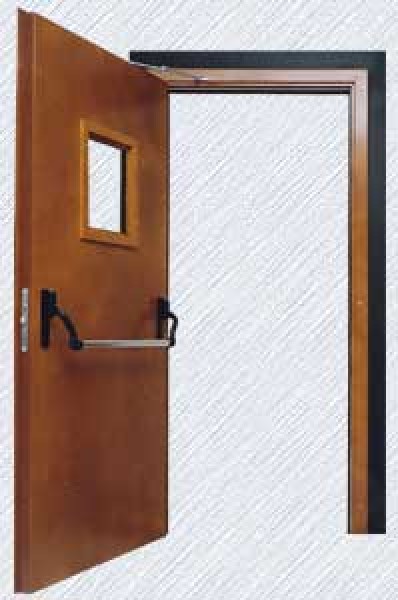

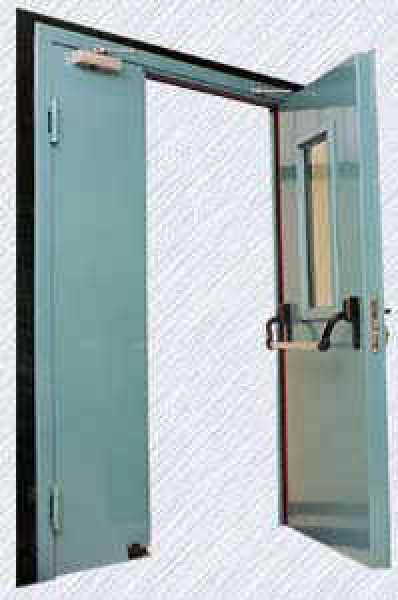

Single-leaf or Double-leaf Fire Door with class RF120 resistance, certified according to standard UNI9723 composed of:
- Frame in “LAF” pressed steel 2 mm thick, completely assembled to the door, supplied with lugs for wall-mounting already soldered on the frame;
- Veneered Door, completely insulated, in “LAF” steel 1 mm thick with a core of extremely heat-resistant material to a total thickness of 64 mm;
- Two Hinges for leaf, in extremely resistant and strong steel, one is adjustable self-closing;
- Yale-type Lock on the primary leaf with cylinder hole and key;
- Lock on the secondary leaf for self-locking, with an internal opening lever, readied for installation of a safety lock for the panic handle;
- Two blocking Spurs inserted in the doorstop on the hinge side;
- Safety Handle in black with a steel core, complete with plates and yale-type cylinder hole;
- Heat-expanding Seal inserted in a special capsule attached to the frame;
- Seal for cold fumes inserted in a special groove in the frame;
- Painted with epoxy pwders stove-dried, colour RAL7032 (light grey) embossed;
- Identification Plate on every door, showing manufacturing and certification details;
The above door, certified in accordance with standard UNI9723 and subsequent amendments, is accompanied by a certificate that the product conforms to the test prototype.
